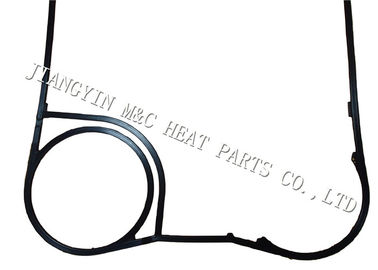

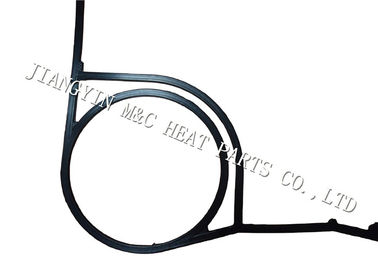

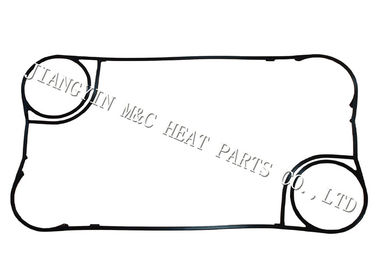

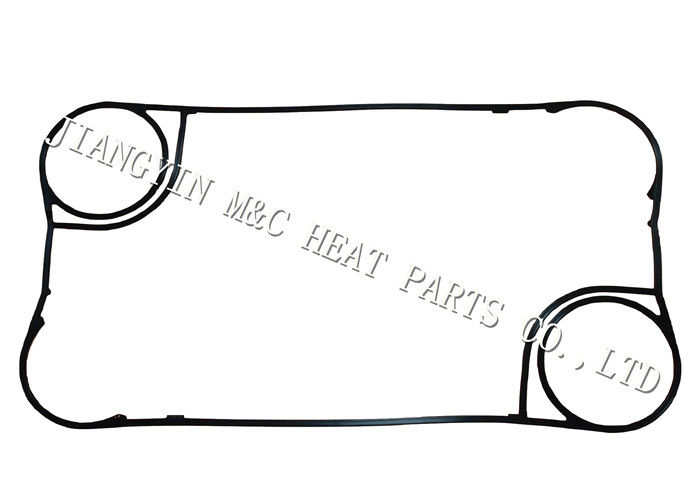

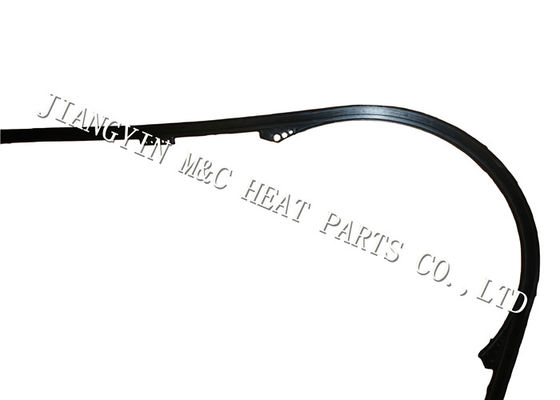

Titanium Plate Heat Exchanger Gaskets 0.6mm Thickness GX60

Large Image : Titanium Plate Heat Exchanger Gaskets 0.6mm Thickness GX60

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	MC
Certification:	ISO SGS FDA
Model Number:	GX60/GXD60/GXP60

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export Carton,Wooden Case,Plywood
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	50000PCS/MONTH

Contact Now

Detailed Product Description

Plate Material:	Stainless Steel 316L/ 304, Titanium, SMO254, Nickel, Hastelloy	Gasket Material:	Viton/FKM/HNBR/NBR
Install Type:	Glue/Hang-on/Clip-on/Snap-on/Sonderlock	Industry:	Chemical/Marine/Beverage/Food/Power/Heating/HVAC
Market:	USA/Europe/Asia/South America/North America/Australia/UK Etc	Thickness:	0.5/0.6mm
Highlight:	GX60 encapsulated gaskets , marine heat exchanger gaskets , 0.6mm Heat Exchanger Gaskets

PHE Application

Gasketed plate and frame heat exchangers provide efficient heat transfer in compact equipment with a small footprint. The units have a flexible design and easy to service and maintain. The product range is extremely wide and used in duties for many industires, Such as:

Heating	Cooking
Cooling	Freezing
Pasteurising	Central HVAC
Water Heaters	Ancillary Cooling
Waste Heat Recovery	Cooling Tower Isolation
Heat Pump Installations	Boiler Sepatation Plates
Lube Oil Coolers( Turbines)	Thermal ( Ice) Storage Systems
Seal Water Coolers ( Vacuum Pumps)	Gearbox Oil Cooling (Wind Turbines)
Heating, Ventilating & Air Condition	Industrial Process Liquid Heating and Cooling
Concentration in the Food and Dairy Industries	Ground Water Isolation Exchangers( Geothermal)
Pharmaceutical-Hygienic Water Heating/Cooling	Brewing-Wort Cooling, Beer/Large/ Cider Condition
Chemical Heating and Cooling, Either in-line or on a Batch Process	Food & Dairy- Specialist in milk pasteuring, raw milkcooling, non viscous food products and CIP wash water heating
Marine-(Titanium Plates) for uses such as main engine cooling, oil cooling, intercoolers and deck wash water heating

PHE Gasket and Plate Material

Gasket Material	Temperature(℃)	Fluid
Viton/FKM	-5 ---------+180	Acid,Alkali Fluid
HNBR	-15--------+160	High-temperature mineral water/oil, High-temprature water
NBR	-15--------+110	Water,Sea water, Mineral smoke water
EPDM	-25-------- +170	Hot water, steam,Acid, Alkali

Plate Material	Fluid
Hastelloy (C276,D205,B2G)	Concentrated sulfuric acid, Hydrochloric,Phosphoric acid
Titanium	Sea water,Salt water, Salt compounds
Nickel	High-emperature, high-concentration caustic soda
20 Cr,18Ni6Mo(254SMO)	Dilute sulfuric,Aqueous salt solution, Inorganic water solution
Stainless Steel (AISI304,AISI316)	Water,Steam,Lubricants
