Product Details:
Payment & Shipping Terms:
|
| Product Name: | Marine Molded Rubber Gaskets | Application: | Power Generation |
|---|---|---|---|
| Shape: | Flat Gasket | After-sales Service Provided: | Online Support,Video Technical Support |
| Plate Material: | 316L,Titanium,SS304,254SMO | Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM |
| High Light: | basco heat exchanger gaskets,heat exchanger components |
||

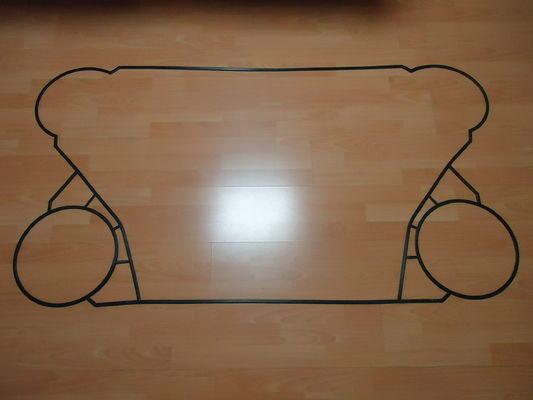

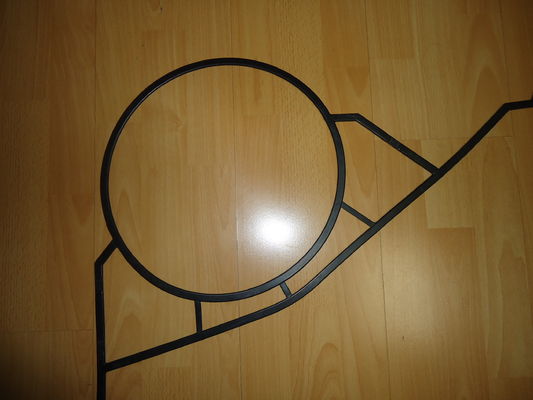

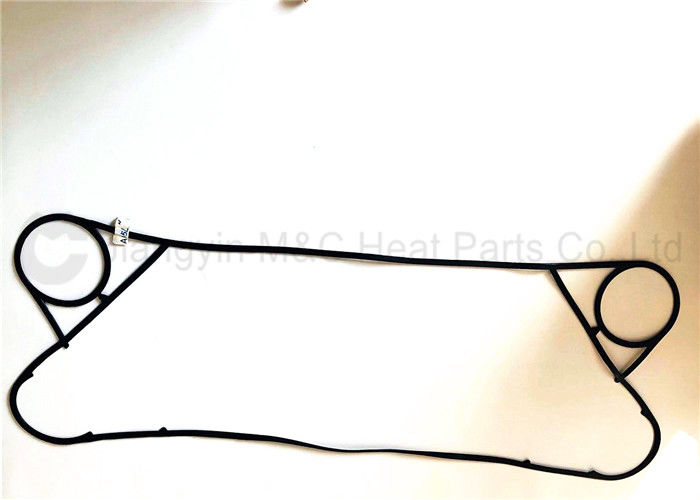

V110 Rubber Seals Sealing Pad Prevent Fluid Leakage used for Marine/vessel
V110Product Description

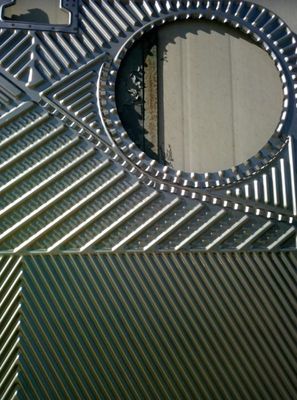

Plate heat exchanger is consist of corrugate heat transfer plate,according to a certain interval,composed of gasket pressed removable heat transfer equipment. When plate assembly,the two groups alternately arranged between the plate with a sealing pad to prevent fluid leakage and the formation of narrow network between the two channels. Why the plate has a variety of corrugated? It is to increase the heat transfer plate area and rigidity,and can make the fluid flow at low turbulence,in order to achieve the effect of enhanced heat transfer.The four hole corners of the plate,forming a fluid distribution pipe and drain pipe,two kinds of heat transfer medium flow into the respective flow through the plate for heat transfer.

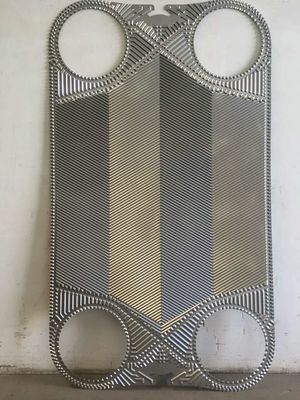

V110 Plate Material
| Plate Material | Suitable for fluid |
| Stainless steel (Alloy304, Alloy 316, etc.) | Clean water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt |
| 20Cr, 18Ni, 6Mo (254SM0) | Dilute sulfuric acid, sparse salt solution, inorganic solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Graphite | Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, hydrofluoric acid |
V110 Gasket Material
| Seal Material | Temperature | Suitable for fluid |
| NBR | -15C°to +130C° | Water, seawater, mineral oil brine |
| NHNBR | -15C°to +160C° | High temperature mineral oil, high temperature water |
| EPDM | -25C°to +180C° | Hot water, steam, acid, alkali |
| Viton/FKM | -5C°to +180C° | Acid, alkali, fluid |
Product Advantage
1,Compact design and high thermal efficiency.
2,De-mountable for cleaning and maintenance,strong flexibility.
3,A quality product ,low maintenance costs with long service life.
4,High operational safety,widely used application possbilities.
