Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Heat Exchanger Pads Detachable Oil Resistant Nitrile Butadiene EC500 Factory Open Mould | Plates Material: | Stainless Steel, 316,304, Nickel Plate |
|---|---|---|---|
| Apply Area: | Chemical And Mechanical | Structure: | Plate Heat Exchanger |
| Type: | Liquid To Liquid Hert Exchanging | Gaskets Types: | Adhesive/hang Buckle/snap Fastener/studs |
| Application: | Refrigeration,HAVC,power Industry, Shipbuilding | Plate Thickness: | 0.5/0.6/0.8mm |
| Size: | Centre To Centre 218*1076mm | Dimension: | 354*1207mm |
| High Light: | EC500 Heat Exchanger Gaskets,heat exchanger parts |
||

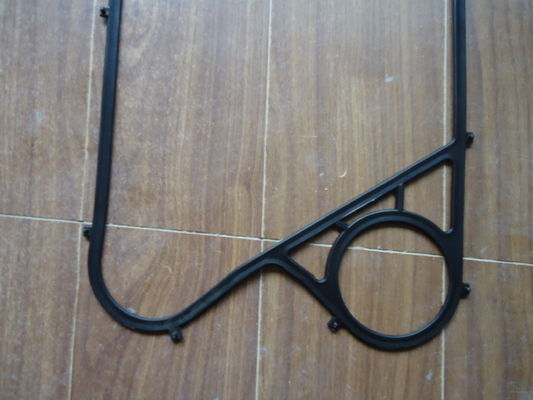

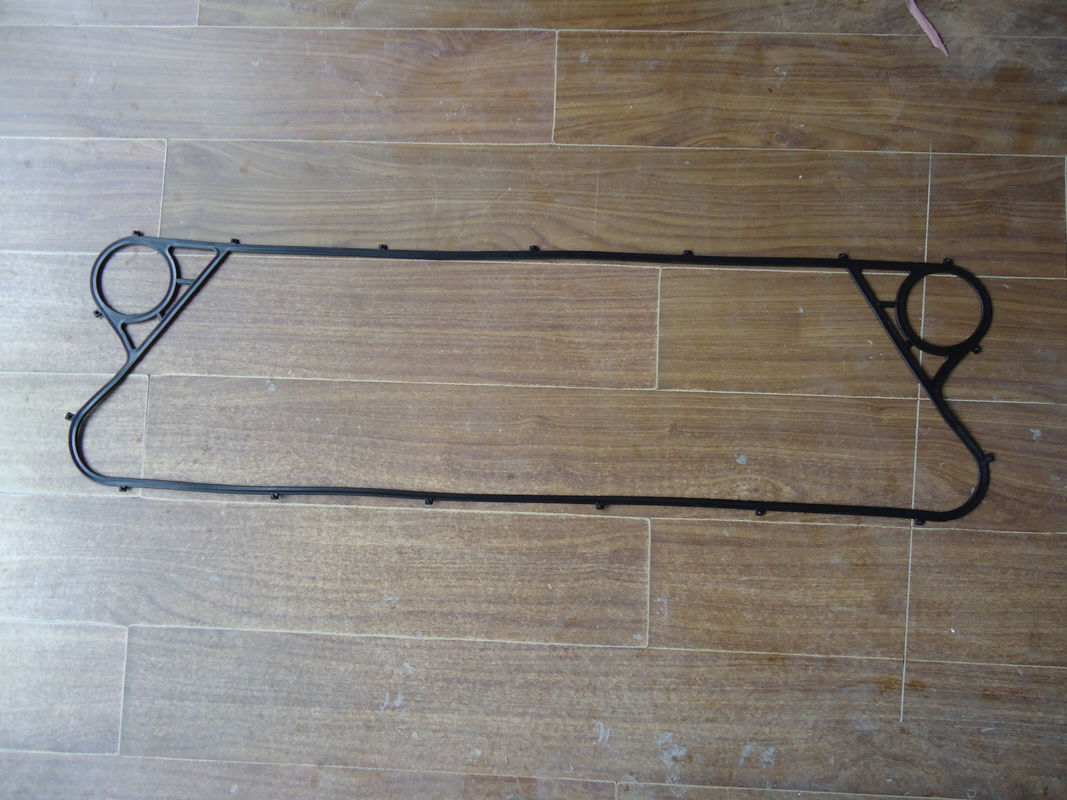

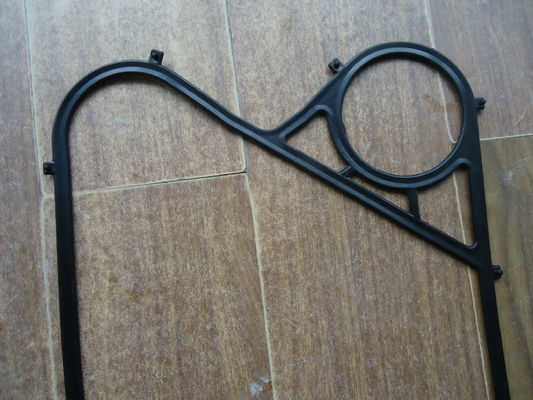

Sigma M37 Heat Exchanger Gaskets Plate Mechanical Power Industry HNBR EPDM centre to centre 218*1076mm
SigmaM37 Parameters of plate heat exchanger
Plate heat exchanger using superimposed in a fixed and mobile corrugated plate between the pressure plate. Since almost all of the materials used in heat transfer, plate heat exchanger can within a small area has a large number of effective heat transfer surface. A plate heat exchanger has the same as the shell and tube heat capacity of the five times as much. Our plate heat exchanger has excellent design characteristics, in order to ensure long-term performance and customer satisfaction.
Sigma M37 Application of plate heat exchanger
| Shipping industry | Textile industry |
| Hvac industry | Chemical industry |
| Food industry | Metallurgical industry |
| Oil industry | Pulp and paper industry |
| biopharmaceutical | Automatic electric industry |
| Machinery industry | Beverage industry |
| Power system | Engineering industry |
SigmaM37 Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| Viton/FKM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
SigmaM37 Plate heat exchanger Plates Gaskets Specification in Heat Exchanger Gaskets
| Material of Plate | Suited liquid Kinds | |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc | |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc | |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc | |
| Ni | High-temp and concentration caustic soda | |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid | |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm | |
| Plate Theta | Low Theta and High Theta | |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes | |
PHE Rubber/Plate Type
Product Display
Gasket Feature
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
Why Choose Us?
Package:standard export carton, plywood case
