Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plate Insulation Gasket | Material: | EPDM, SBR Etc |
|---|---|---|---|
| Type: | Plate Heat Exchanger Spare Parts, Clip-in,Loc-in, And Glue-on | Size: | Centre To Centre: 1338mm*225mm |
| Application: | HVAC,Power Generation,Food&Beverage Industry Etc | Transfer Area: | 0.5㎡ |
| High Light: | industrial heat exchanger gaskets,heat transfer plates |
||

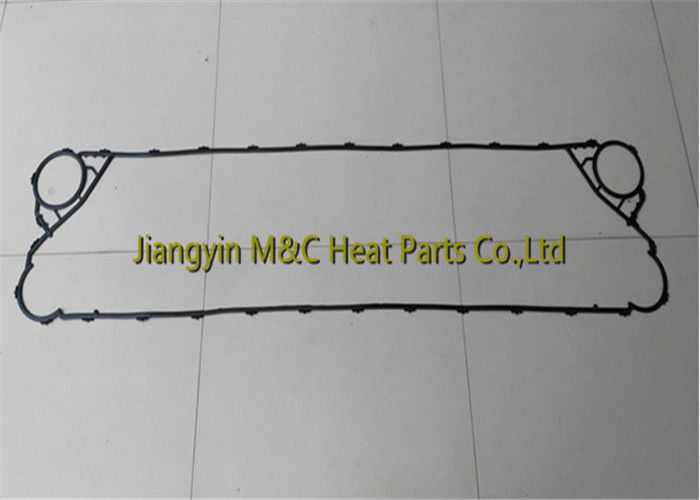

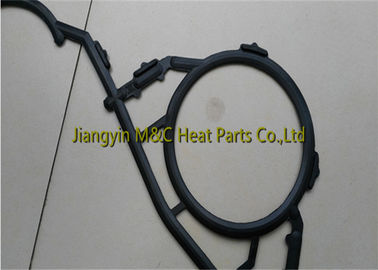

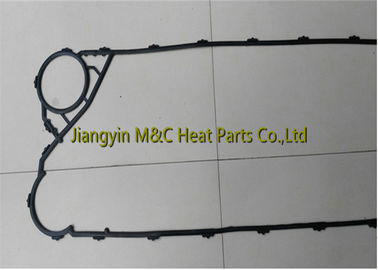

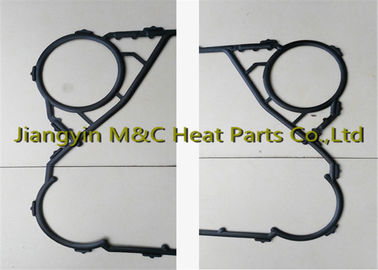

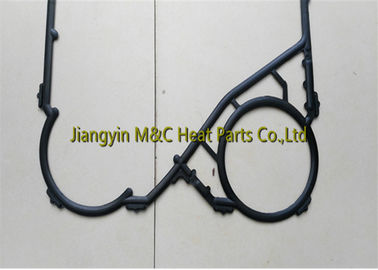

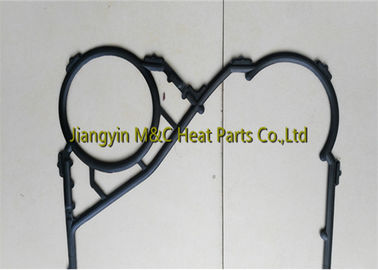

Basic Information Of Gasket
Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.
M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
Product Information
Material:NBR,EPM etc
Advantage: produce plastic deformation and have certain strength.
Feature
A: Simple style and good sealing
B:Widely used and adaptable
C:Resistant to corrosion and high temperature
D:Easy to disassemble and maintain
Parameters
| Gasket Material | Temperature Range(℃) | Hardness | Available Fluid |
| NBR | -20 to 110 | -75+/-3 | Water,Oil,Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam,Ammonia,Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil,Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High-Temperature Water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Application
Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
Why Choose Us ?
1. We always think from the perspective of customers, solve problems and bring higher value to customers
2. More than 15 years of professional experience and expert team
3. Professional production r&d team to improve heat exchange efficiency and reduce operating costs
4. The technical scheme of guaranteed commitment
5. Whole process service from pre-sale to after-sale
6. Help customers reduce risks and save costs to maximize customer benefits
