Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color

Large Image : Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color

Product Details:

Place of Origin:	Jiangsu China
Brand Name:	MC
Certification:	ISO SGS FDA
Model Number:	Sigma114

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export carton /Wooden case
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	Heat Exchanger Plate & Gaskets	Gaskets Material:	NBR, HNBR,EPDM,VITON
Application:	Heater Parts	Roller:	227mm
Transfer Area:	1.1㎡	Dimension:	Centre To Centre: 1675mm*425mm
Highlight:	viton gasket , phe gasket

Product Description

Plate Material	Suitable for fluid
304 or 316L	Clean water, river water, edible oil, mineral oil
Ti, Ti-Pd	Sea water, salt water, salt
20Cr, 18Ni, 6Mo (254SM0)	Dilute sulfuric acid, sparse salt solution, inorganic solution
Ni	High temperature, high concentration caustic soda
C276, D205, B2G	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
Graphite	Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, hydrofluoric acid

Seal Material	Temperature	Suitable for fluid
NBR	-15C°to +110C°	Water, seawater, mineral oil brine
EPDM	-25C°to +140C°	Hot water, steam, acid, alkali
HNBR	-15C°to +160C°	High temperature mineral oil, high temperature water
Viton/FKM	-5C°to +200C°	Acid, alkali, fluid

Technical Parameters

Design pressure: 1.6-2.5Mpa

Design temperature: -20C°-200C°

The material of the plate and the material of the gasket are flexibly selected according to the process conditions used.

Products show

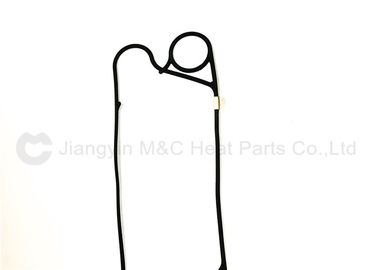

Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color 1

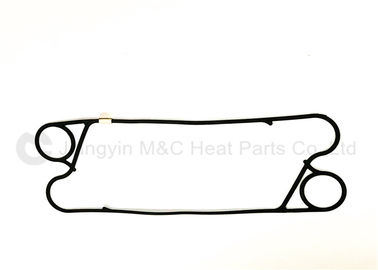

Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color 2

Application Industry

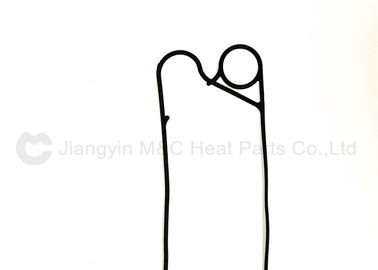

Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color 3

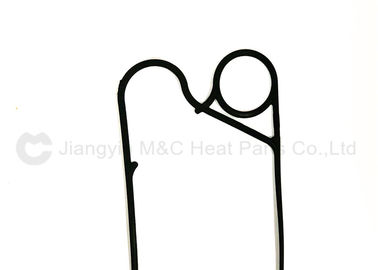

Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color 4

Delivery

Sigma114 Gaskets , Mercruiser Heat Exchanger Gasket Black Metal Color 5

Packing Details : Each wrapped in plastic wrap and then packed in a wooden box. (Plate heat exchanger & gasket)

Delivery Details : Normally 7-15 days, it depends on actual quantity and the sizes of the order.

Tag:

viton gasket,

neoprene gasket,

phe gasket
