VT40M plates Low maintenance costs Easy inspection and disassembly

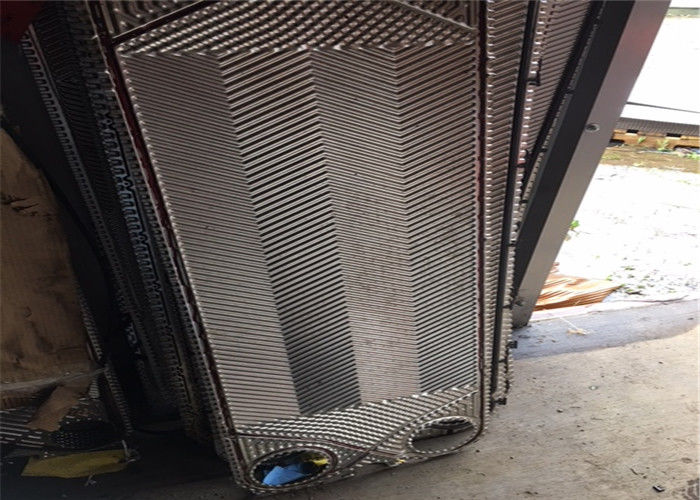

Large Image : VT40M plates Low maintenance costs Easy inspection and disassembly

Product Details:

Place of Origin:	Jiangsu China
Brand Name:	MC
Certification:	ISO SGS FDA
Model Number:	VT40M

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export carton /Wooden case
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	Heat Exchanger Plate & Gaskets	Gaskets Material:	NBR, HNBR,EPDM,VITON
Type:	Plate Heat Exchanger With Gaskets	Application:	Heater Parts
Dimension:	Centre To Centre: 1227mm*257mm	Transfer Area:	0.46㎡
Highlight:	gasket replacement , rubber gasket sheet

VT40M plates Low maintenance costs Easy inspection and disassembly

VT40M Product Details

Plate heat exchanger AND Plate with gaskets for sale.

Plate and frame heat exchangers, titanium heat transfer plate, NBR/EPDM gasket.

VT40M Plate Quality

Material	Fluid Media
Stainless steel(Alloy 304,Alloy 316)	Water, river water, edible oil, mineral oil
Ti,Ti-Pd	seawater, brine, and chloride
20Cr,18Ni,6Mo(254SMO)	sulfuric acid, sparse salified aqueous solution, an aqueous solution of an inorganic
Ni	High temperature, high concentration caustic soda
HASTELLOY(C276,D205,B2G)	concentrated sulfuric acid, hydrochloric acid,phosphoric acid

Gasket Quality

Rubber Type	NBR	EPDM	VITON/FKM	HNBR
Application Temperature	-20°C- +130°C	-50°C-+150°C	-30°C-+251°C	-15°C- +160°C
Fluid Media	Water Sea water Mineral oil Salt brine	Hot water Steam Acid Alkali	High temperature resistance Strong oxidants Oil Acid and alkali	High temperature mineral oil and water
Feature	Easier to replace than the traditional gasket, high pressure, high temperature, longer life, should not be leaked

VT40M plates Low maintenance costs Easy inspection and disassembly 0

Packing and shipping

Packiaging:Normal we use standard export pallet or carton . the pallet and wood box are easy for the forklift to transfer. We choose the packing method as your requirement.

Shipping: The delivery period of our products depends on the type, size and quantity etc. and the detailed days should be confirmed after we confirm all the information above.
