Detachable Heat Exchanger Gasket economica and environmental protection

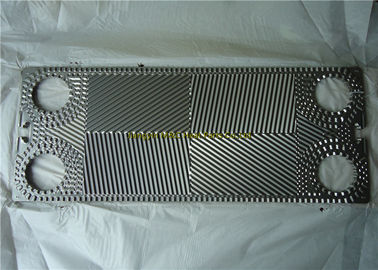

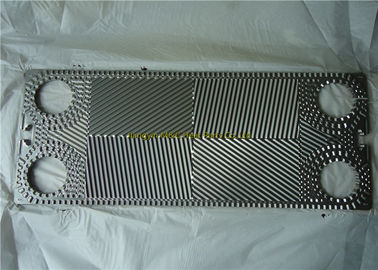

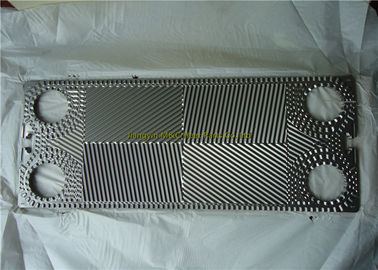

GX26 Diverse Plate Models

We have almost 150 models for detachable plate heat exchanger.The plate angle is distinguished between high theta and low theta, chevron is divided into shallow groove,deep groove and super-deep groove which can be assembled to narrow passage PHE,wide passage PHE and super-wide passage PHE in order to be applied in different fields and fluids.

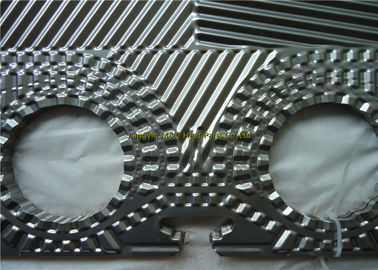

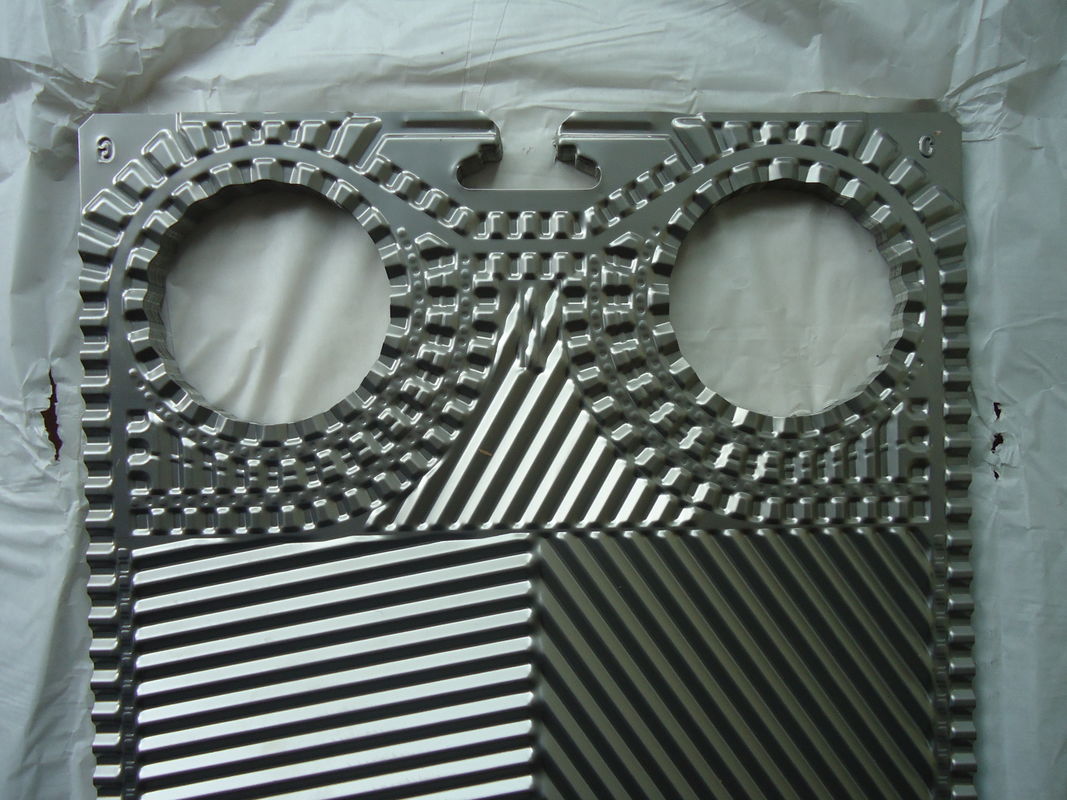

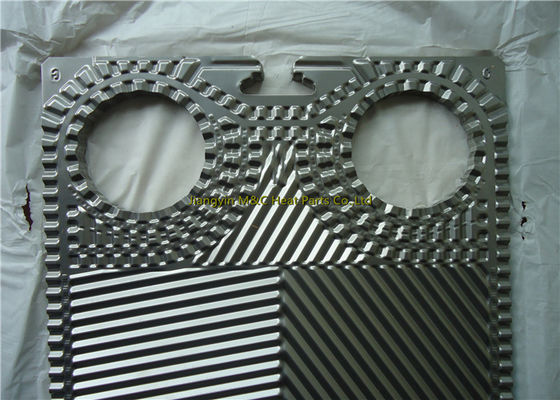

Unique Plate Design

We design efficient heat transfer plate based on super tinny digital precise measuring and test method.The unique chevrons of plates along with reasonable plate mould design improve heat transfer efficiency.

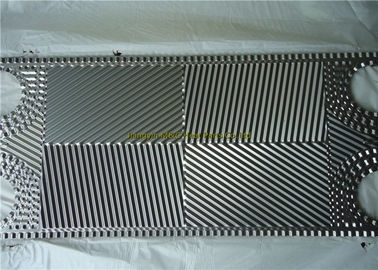

Mix design

M&C plates with H theta and L theta which can achieve the thermal mix design.

GX26 Parameter

Channel Arrangement

Professional thermal software ensures the optimal performance according to different requirement.

High theta channel arrangement(H+H):for higher thermal performance and allowable pressure drop requirement applications.

Low theta channel arrangement(L+L):for lower allowable pressure drop requirement application.

Mixed channel arrangement(H+L/H+M/M+L):optional arrangement to gain the optimized performance.

Our Advantage

EXCELLENT QUALITY LONG-TERM TECHNICAL SUPPORT

We supply service from PHE assembling to technical consultation.We have built a long service relationship with customers since the order confirmed.
