| Product Name: | Welded Plate And Frame Heat Exchanger | Material: | SS316/Ti/Hastelloy |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Plate Tickness: | 0.5/0.6/0.7 |
| Application: | PHE Parts | Shape: | Flat Plate |
| High Light: | Heat Exchanger Welded Plate,0.7mm High Heat Exchanger Plate,Hastelloy Heat Transfer Plate |
||

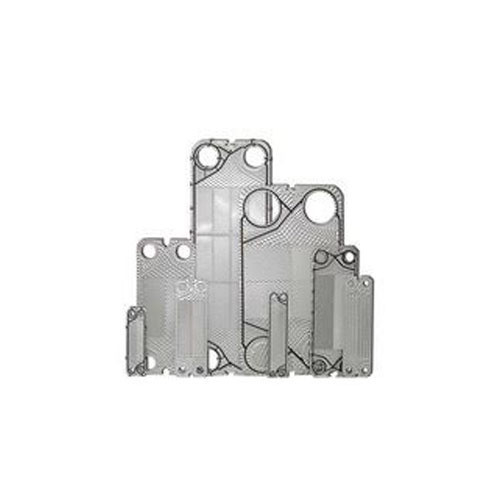

TR9GN High Heat Transfer Coefficient Heat Exchanger Plate
TR9GN Plate Heat Exchanger Description
Metal plate: It is an important heat transfer element for pressing metal sheet with corrugation, sealing groove and corner hole.
Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".
Sealing gasket: installed in the slots along the perimeter of the plate of the gasket and seal plate between the peripheral, prevent fluid leak outward, and according to the requirements of design, the sealing part of the Angle of hole, the cold and hot liquids according to their respective port flow.
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of rubber.
TR9GN Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
TR9GN Production introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).
Gasket Feature
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
