Product Details:
Payment & Shipping Terms:
|

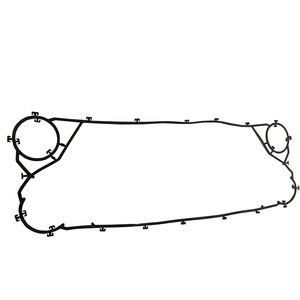

| Product Name: | High Strength Epdm Rubber Gasket | Material: | SILICONE |
|---|---|---|---|
| Application: | Hvac, Textile Industry | Size: | Centre To Centre: 1019mm*285mm |
| Sample: | Free | ||
| High Light: | High Strength Epdm Rubber Gasket,Rubber Gasket Sheet UV Stable,1019 mm*285 mm Rubber Gasket Sheet |
||
Technical Specification
| Design Code | ASME,PED |
| Plate Material | SS304,SS316,904L,254SMO,C276 |
| Plate Thickness | 0.5mm,0.6mm,0.8mm,1mm |
| Gasket Material | NBR,HNBR,EPDM,HEPDM,FKM(Viton),CR |
| Gasket assembly | Clip on,Lock in,Snap on,Glued |
| Frame material | Carbon steel,Stainless steel |
| Nozzle | Flange,Rubber insert,Thread |
| Connection size | DN15-DN500 |
| Connection standard | Customized |
| Color | Customized |
| Application | HVAC,Power,Sugar,Marine,Chemical |
Gasket Selection
| Gasket Material | Max. Temp | Application |
| NBR Standard | 100℃/212℉ | Remarkable resistance to oils,solvents and grease. |
| NBR-HT | 130℃/266℉ | |
| HNBR | 160℃/320℉ | |
| EPDM | 150℃/302℉ | Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering). |
| EPDM-HT | 160℃/320℉ | |
| FPM-A | 180℃/356℉ | Resistance to most fluids for industrial use |
| FPM-G | 220℃/428℉ | High resistance to extreme temperature : |
Gasket Information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.
M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
