GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm

China Jiangyin M&C Heat Parts Co.,Ltd certification
I'm Online Chat Now

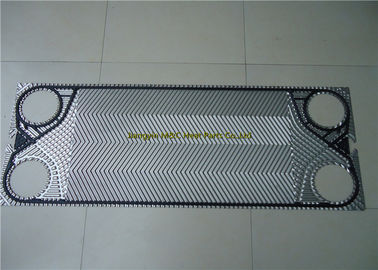

GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm

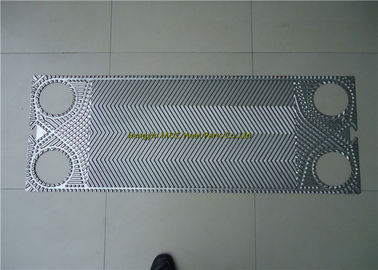

GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm
GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm
video play

Large Image :  GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: M&C
Certification: ISO SGS FDA
Model Number: GC51
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export Carton,Wooden Case,Plywood
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 50000PCS/MONTH
Detailed Product Description
Structure: Plate Heat Exchanger Material: SS316
Plate Tickness: 0.5/0.6/0.8/1mm Application: PHE Parts
Power(W): 7.5-110kw Dimension(L*W*H): Request
Highlight:

heating plate

,

brazed plate


GC51 Basic information of PHE plate


Each plate contains two parts

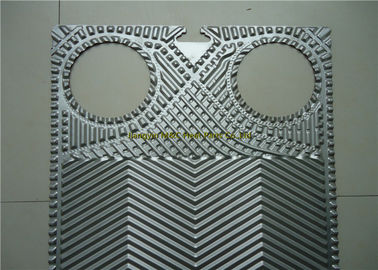

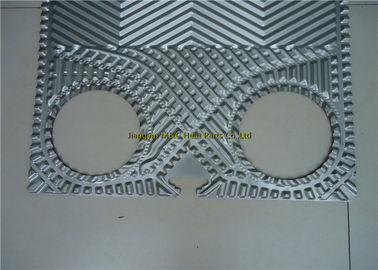

Metal plate:It is an important heat transfer element for pressing metal sheet with corrugation, sealing groove and corner hole.
Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".

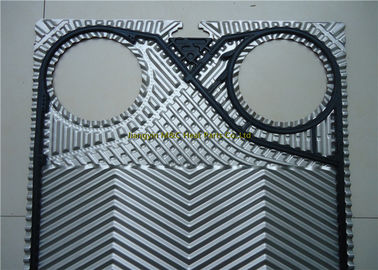

Sealing gasket: installed in the slots along the perimeter of the plate of the gasket and seal plate between the peripheral, prevent fluid leak outward, and according to the requirements of design, the sealing part of the Angle of hole, the cold and hot liquids according to their respective port flow.





GC51 Parameters





Plate Material Available Medium
AISI304, AISI316L Pure Water, Fresh Water, Mineral Water
Titanium Sea Water, Mineral Oil, Vegetable Water
254SMO Dulute Sulphuric Acid etc.
Ni Caustic Soda with high temperature and concentraction
Hastelloy Concentration Sulphuric Acid etc.




Sealing principle

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of rubber.
Brand Name: M&C
Material: Stainless Steel 316L, Stainless Steel 304, Titanium
Advantage: Produce plastic deformation and have certain strength

Dimension: 1415*496mm
Center of hole distance: 1238*310mm
Corrugation deep: 3mm

GC51 Feature


1. Advanced plate design to improve heat transfer efficiency.
2. Uniform distribution of fluid, accurate positioning.
3. Common types of plate heat exchanger plates at home and abroad.
4. Reasonable shunt area, enhance corrosion resistance, improve the utilization rate of heat exchange area.
5. The reverse flow of the two fluids greatly improves the heat exchange efficiency.
6. Parallel piping of the same fluid inlet and outlet simplifies engineering installation.
7. Single plate, simplified maintenance.

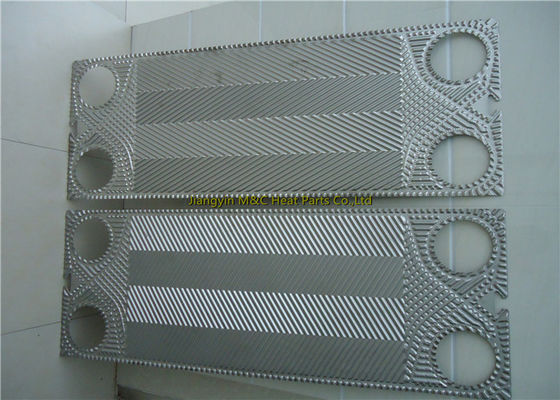

GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm 0

 GC51 Sealing Groove Plate Heat Exchanger Parts 0.5/0.6/0.8/1mm 1





Why Choose us ?


We seek an understanding of the working conditions for you, and carries on the effective communication with your engineer, to make a perfect solution.It will be more accurate, reducing purchase cost and energy consumption (water, electricity and gas).
Our technical engineers can according to user's working conditions, for our customers to provide professional selection plan and drawings,
and we will choose the appropriate solutions, to provide a stable, efficient service for you.

We will give more consideration to customers' working conditions in order to reduce their equipment purchasing cost and energy consumption of processing operations (water, electricity and gas)
