Product Details:
Payment & Shipping Terms:
|
| Structure: | Plate Heat Exchanger | Material: | SS316/SS304/Ti/254SMO |
|---|---|---|---|
| Plate Tickness: | 0.5/0.6/0.8/1mm | Application: | PHE Parts |
| Max Working: | 3.0Mpa | Dimension: | Centre To Centre: 1720mm*570mm |
| Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM,FDA Stan | Condition: | New |
| Size: | Outside Length And Width: 2072*922mm | Diameter: | 340mm |
| High Light: | heating plate,cooling plate |
||
GX145 Plate heat exchanger and spare parts (plate and gasket)
We mainly manufacture plate heat exchanger and spare parts (plate and gasket),we can provide many brands of plates and gasketed plate heat exchanger with competitive price and high quality,Most importantly we provide free sample if you are interested.
By keeping most often used plates in stock at all times, we have the ability to offer immediate shipment on most requests. Our turn around time and price is unmatched in the industry.
We guarantee every plate sold with equal or longer warranty periods compared to the original manufacturer. The models we provide can replace the world famous manufacturers.

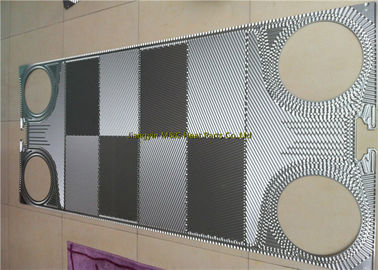

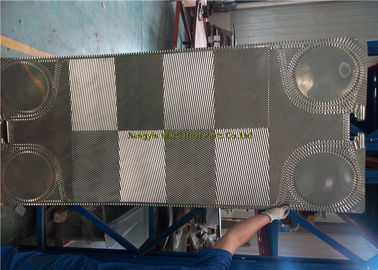

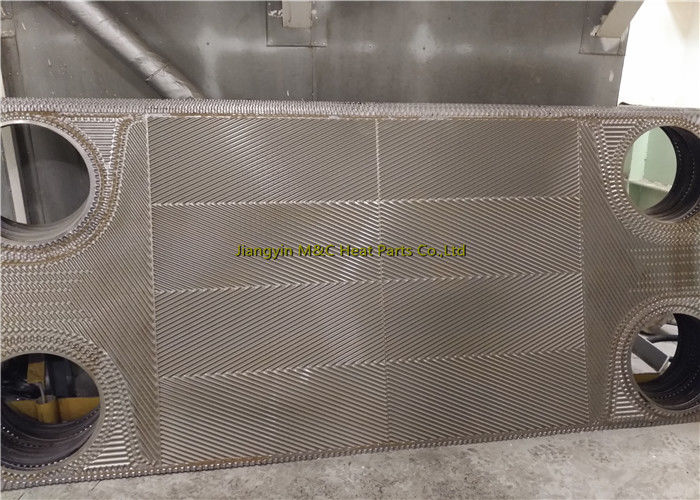

GX145 Plate heat exchanger Plates Gaskets Specification in Heat Exchanger Gaskets
| Material of Plate | Suited liquid Kinds | |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc | |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc | |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc | |
| Ni | High-temp and concentration caustic soda | |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid | |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm | |
| Plate Shape Size | 2072*922mm | |
| Plate Center Size | 1720*570mm | |
| Corrugation Depth | 4.6mm | |
| Angle Hole Diameter | Φ340 | |
| Corrugated Angle | 46° /90 °/180 °/0 ° | |
| Working Pressure | <= 25 bar | |
| Plate Theta | Low Theta and High Theta | |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes | |
GX145 Plate heat exchanger advantage
GX145 Plate heat exchanger main components
Tightening bolts---Press the channel plates together
Connections--- Holes through the frame plate, permitting the media to enter into the heat exchanger.
Support column
Bolt protection
Upper guide bar and Lower guide bar
S-frame and E-frame
Rubber lining

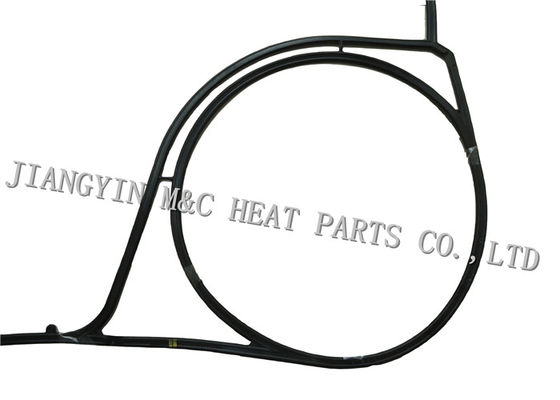

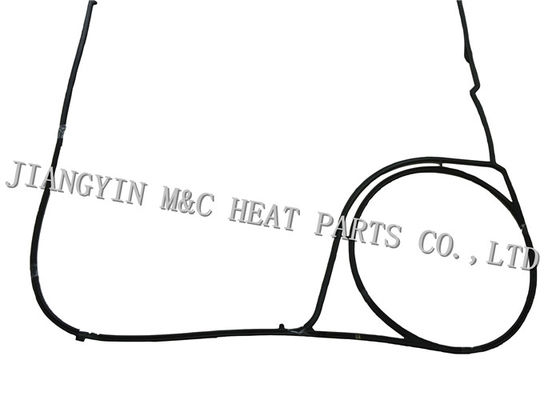

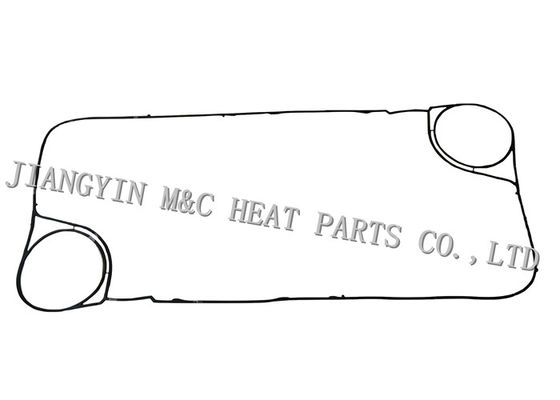

GX145 Gasket Feature
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
Why Choose Us?
Package:standard export carton, plywood case
