Product Details:
Payment & Shipping Terms:
|
| Gasket Material: | EPDM,HNBR,NBR EPDM FKM | Type: | Plate Heat Exchanger Spare Parts |
|---|---|---|---|
| Dimension: | Centre To Centre: 915mm*465mm | Transfer Area: | 0.6m² |
| Condition: | New | Color: | Black,customized |
| Pitch-row: | 229mm | After-sales Service Provided: | Online Support,Video Technical Support |
| High Light: | HNBR Heat Exchanger Gasket,M60 Heat Exchanger Gasket,M60 heat exchanger seals |
||

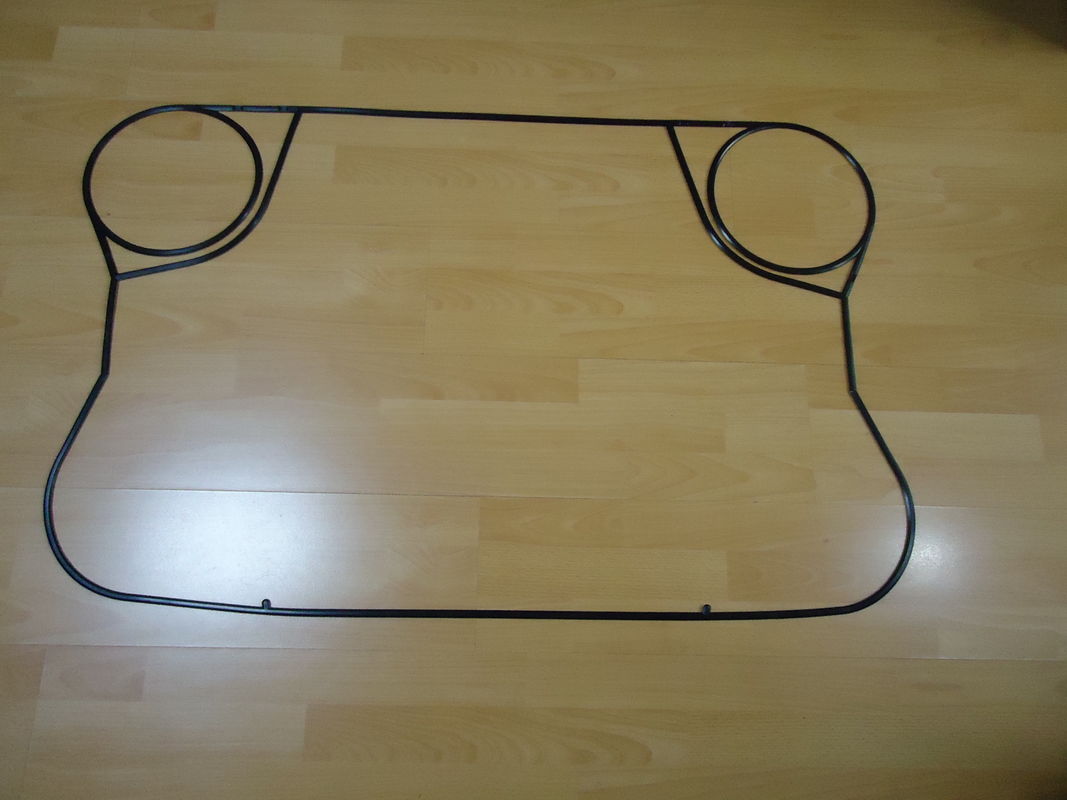

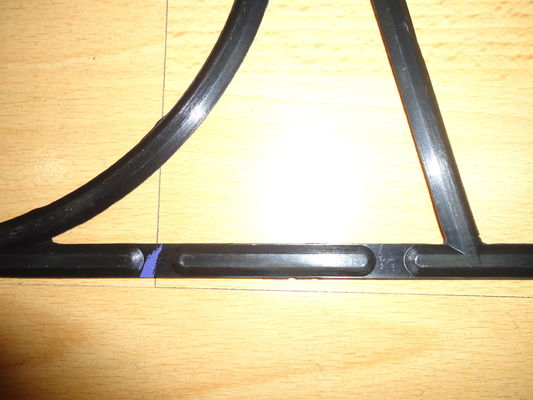

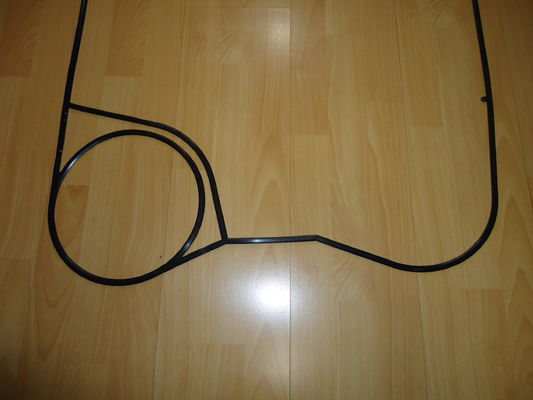

M60 Product Details
We make heat exchanger gaskets on stock in order to provide the fastest delivery times in the business. With such a large inventory, we can supply gaskets for highly specialized unit requirements. We manufacture OEM-specified heat exchanger gaskets unlike competitors who are simply resellers.FDA-approved versions of NBR and EPDM are standard for us. We use imported Vtion raw materials to ensure the superior quality. The models we provide can replace the world famous manufacturers.
M60 Parameters
| Plate Material | SS304 SS316L Titanium SMO254 C276 |
| Plate Thickness | 0.5/0.6/0.8/1.0mm |
| Gasket Material |
NBR (applicable temperature -15~120℃) HNBR (applicable temperature -15~160℃) EPDM (applicable temperature -25~150℃) HEPDM (applicable temperature -25~170℃) Viton/FKM (applicable temperature -5~220℃) NEOPREKE (applicable temperature -5~130℃) VNQ (applicable temperature -65~250℃) |
M60 Gasket Features
MC gaskets can be designed to different assembing type, Such as glue-on,clip-on,snap-on,ball-in etc.
High Quality--- The rubber material are mixed in closed space with controllable pressure and temperature which ensure high production efficiency and excellent quality. Spare parts surface contact with rubber material is polished anti-corrosion.
Reasonable Design--- Parameters of equipment are designed reasonably to distribute material evenly.
Easy To Use--- Adding rubber material from the back door of the equipment, mixing room turns forward by 140°to finish and make the cleaning of room easy.
PLC Controller---PLC controller has perfect controlling function,testing and alarming function and safety secure function,serial interface.
M60 Production Introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).
Sealing Principle
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole. When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media. Sealing gasket according to different media and operation temperature to choose different types of gaskets.
Brand Name: M&C
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
Shipping
Delivery time: 5-8 working days after payment receipt confirmed (based on actual quantity)
Packing: standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
