Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plate Heat Exchanger Parts | Material: | NBR/EPDM/SILICONE/VITON |
|---|---|---|---|
| Application: | PHE Parts | Shape: | Flat Gasket |
| Size: | Centre To Centre: 535mm*114mm | Transfer Area: | 0.087㎡ |
| High Light: | UX01 OEM Plate Heat Exchanger Gasket,VT04 EPDM Plate Heat Exchanger Gasket,Plate Heat Exchanger Gasket For Heating |
||

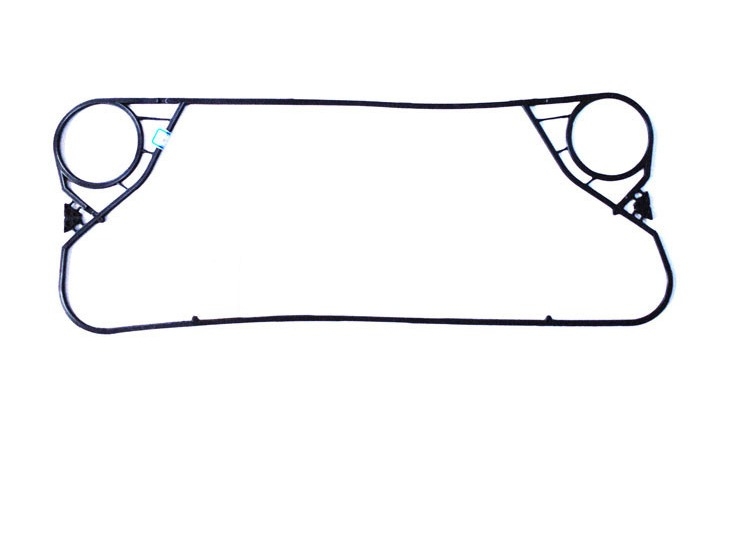

UX01 OEM Plate Heat Exchanger VT04 EPDM Gasket For Heating And Cooling
Product Description
Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength. The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
For plates:
*Our production capacity covers more than 300 specification and size plates, the plates function equals to the famous brand PHE manufactures.
*Plate Port diameter 29mm to Port diameter 328mm, plate width from 125mm to 995mm, height from 429mm to 2245mm,thickness from 0.5-1.0mm.
| Plate material | Applicable fluids |
| Stainless steel(SU304.316 etc) | Clean water, river water, edible oil, mineral oil |
| Stainless steel & Ti, Ti-Pd | Sea water, salty water, salt compounds |
| 20Cr, 18Ni,SMO | Dilute sulfuric acid, water solution of salt matter, Inorganic solution |
| Nickel | High temperature and high concentration of caustic soda |
| Hastelloy | Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid |
For gasket :
We produce and supply many kinds of gasket for plate heat exchanger, certified by ISO9001.
| Gasket Material | Applicable Temperature | Applicable Fluids |
| NBR | -15~+135 | Water seawater, Mineral oil, Saline |
| EPDM | -25~+180 | Hot water, vapor, acid, alkali |
| F26 | -55~+230 | Acid, alkali, fluids |
| FTP | 0~+160 | concentrated acid, alkali, High temperature oil, vapor |
| Rubber Type | Fluorubber | EPDM | NBR |
| Tensile Strength MPa | ≥13 | ≥16 | ≥17 |
| Elongation % | ≥120 | ≥170 | ≥200 |
| Shore A Hardness | 80±5 | 80±5 | 75±3 |
| Tear Strength KN/M | ≤30 | ≤30 | ≤30 |
| Compressive Deformation | 24h×23≤2.5 | 24h×23≤5 | 24h×23≤2.5 |
| 24h×180≤15 | 24h×150≤15 | 24h×125≤15 | |
| Ozone Resistance | Excellent | Excellent |
good
|
