Product Details:
Payment & Shipping Terms:
|
| Product Name: | Food Grade Phe Gasket | Material: | NBR/EPDM/SILICONE/VITON |
|---|---|---|---|
| Application: | PHE Parts | Shape: | Flat Gasket |
| Sample: | Free | ||
| High Light: | Food Grade Chemical Phe Gasket,RX135A Chemical Phe Gasket,Non Sticky Chemical Phe Gasket |
||
Gasketed Plate Heat Exchanger

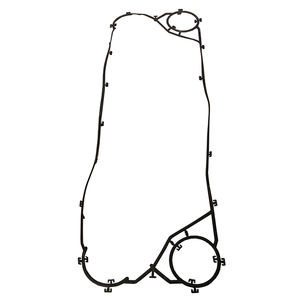

Plate Heat Exchanger gasket
The gasket is made of a snap fastener gasket,the sealing and fixing functions are separated,and the sealing function and disassembly and assembly are simple.
Two sealed is arranged below the corner hole,and a signal hole is arranged at the same time,so as to prevent the mutual mixing of the two medias.
| Material of Gasket | Operating Temperature(℃) | Suited Liquid kinds |
| NBR | -15 to +135 | Water,sea water etc |
| EPDM | -25 to +180 | Hot water,steam etc |
| F26 | -55 to +230 | Acid,Caustic,Fluid |
| TPF | 0 to +160 | Concentrated acid etc |
Product advantage
1,Reliable quality,lower price
2,Fast delivery
3,Fully fit for plate heat exchanger
PHE Principle
Flat plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids.This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. This high heat transfer efficiency for such a small physical size has increased the domestic hot water(DHW) flow rate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water.Larger commercial versions use gaskets between the plates.
Payment and Shipping
Payment
Standard payment terms: 100% in advance.
Pay 30% deposit in advance, 70% balance before shipment.
More payment terms could be provided (T/T, WESTERN UNION)
Shipping
Delivery time: 5-8 working days after payment receipt confirmed (based on actual quantity)
Packing: standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
About M&C
M&C Heat Parts Co.,Ltd is founded in Wuxi,Jiangsu.We specialize in R&D and production of plate heat exchanger.M&C has Gasketed Plate Heat Exchangers,Brazed Plate Heat Exchanges,Plate Heat Exchanger Gaskets and Plate Heat Exchanger Plates,these products are widely used in HVAC,Air Conditioning,Automoive,Beverage,Food,Chemicals,Oil,Power,Paper,Transportation and other fields.M&C has a professional technical team and good quality sales team.Reliable product quality,technology leader and passionate service to make M&C has been a leading plate heat exchanger designer and manufacturer in China.We can according customers requirements to provide design,manufacturing and other services and consulting.
